Project Reactor学习--背压
Reactive Stream和Java 8 中Stream流的重要一个区别就是Reactive Stream支持背压（Back Pressure），
这也是Reactive Stream的主要卖点之一。
背压指的是当Subscriber请求的数据的访问超出它的处理能力时，Publisher限制数据发送速度的能力。
默认情况下，Subscriber会要求Publisher有多少数据推多少数据，能推多快就推多块。
本质上背压和TCP中的窗口限流机制比较类似，都是让消费者反馈请求数据的范围，生产者根据消费者的反馈提供一定量的数据来进行流控。
反馈请求数据范围的操作，可以在Subscriber每次完成数据的处理之后，让Subscriber自行反馈；也可以在Subscriber外部对Subscriber的消费情况进行监视，根据监视情况进行反馈。
如下例子：一个带线程池的Subscriber，当线程池的workQueue未满时，向Publisher请求数据，反之则等待一会再请求。
public class BackpressureDemo {
public static void main(String[] args) throws InterruptedException {
CountDownLatch countDownLatch = new CountDownLatch(1);
//可以观察到明显的限流
Flux<Long> flux = Flux.interval(Duration.ofMillis(50))
.take(50)
.doOnComplete(() -> countDownLatch.countDown());
flux.subscribe(new MyLimitedSubscriber(5));
countDownLatch.await();
//使用比count还大的limiter，相当于不限流
System.out.println("use big limiter");
Flux.interval(Duration.ofMillis(50))
.take(50)
.subscribe(new MyLimitedSubscriber(100));
}
}
public class MyLimitedSubscriber<T> extends BaseSubscriber<T> {
private long mills;
private ThreadPoolExecutor threadPool;
private int maxWaiting;
private final Random random = new Random();
public MyLimitedSubscriber(int maxWaiting) {
this.maxWaiting = maxWaiting;
this.threadPool = new ThreadPoolExecutor(
1, 1, 0L,
TimeUnit.MILLISECONDS, new LinkedBlockingQueue<>(maxWaiting));
}
@Override
protected void hookOnSubscribe(Subscription subscription) {
this.mills = System.currentTimeMillis();
requestNextDatas();
}
@Override
protected void hookOnComplete() {
long now = System.currentTimeMillis();
long time = now - this.mills;
System.out.println("cost time:" + time / 1000 + " seconds");
this.threadPool.shutdown();
}
@Override
protected void hookOnNext(T value) {
//提交任务
this.threadPool.execute(new MyTask(value));
//请求数据
requestNextDatas();
}
private void requestNextDatas() {
//计算请求的数据的范围
int requestSize = this.maxWaiting - this.threadPool.getQueue().size();
if (requestSize > 0) {
System.out.println("Thread Pool can handle,request " + requestSize);
request(requestSize);
return;
} else {
try {
Thread.sleep(100);
} catch (InterruptedException e) {
e.printStackTrace();
}
requestNextDatas();
}
}
class MyTask<T> implements Runnable {
private T data;
public MyTask(T data) {
this.data = data;
}
@Override
public void run() {
try {
Thread.sleep(random.ints(100, 500).findFirst().getAsInt());
} catch (InterruptedException e) {
e.printStackTrace();
}
System.out.println("data is " + data);
//可以在处理完成数据之后，立刻进行请求，此时Subscriber肯定是能够可以可靠处理数据的
//requestNextDatas()或者调用BaseSubscriber#request(1)
}
}
}
上面例子中Publisher在收到request之后，实际上是采用了默认的OverflowStrategy，即将数据缓存起来，当Subscriber有能力处理时，再推送过去。
背压策略
背压策略指的是当Subscriber无法及时request更多数据时，Publisher采取的措施。
可选的策略有buffer、error 、drop和latest，默认策略为buffer。
背压策略方法
可以通过onBackPressureBuffer、onBackPressureError、onBackPressureDrop、onBackPressureLatest选择不同策略。
onBackPressureBuffer
例子如下：
public class BackpressureOnBackpressureError {
public static void main(String[] args) throws InterruptedException {
ExecutorService threadPool = Executors.newFixedThreadPool(4);
UnicastProcessor<String> hotSource = UnicastProcessor.create();
Flux<String> hotFlux = hotSource
.publish()
.autoConnect()
.onBackpressureError();
CompletableFuture future = CompletableFuture.runAsync(() -> {
IntStream.range(0, 50).parallel().forEach(
value -> {
threadPool.submit(() -> hotSource.onNext("value is " + value));
}
);
});
System.out.println("future run");
hotFlux.subscribe(new BaseSubscriber<String>() {
@Override
protected void hookOnSubscribe(Subscription subscription) {
request(1);
}
@Override
protected void hookOnNext(String value) {
System.out.println("get value " + value);
}
@Override
protected void hookOnError(Throwable throwable) {
throwable.printStackTrace();
}
});
Thread.sleep(500);
System.out.println("shutdown");
threadPool.shutdownNow();
}
}

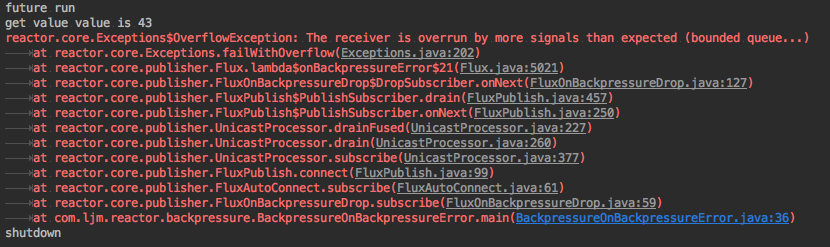

执行结果如下：
onBackPressureBuffer方法还可以指定缓存溢出策略，默认策略为BufferOverflowStrategy.ERROR效果即上面的例子。可选的策略还有DROP_OLDEST丢弃最旧元素，DROP_LATEST丢弃最新的元素。如下：
public class BackpressureOnBackpressureBuffer2 {
public static void main(String[] args) {
System.out.println("Drop Oldest");
drop(BufferOverflowStrategy.DROP_OLDEST);
System.out.println("Drop LASTED");
drop(BufferOverflowStrategy.DROP_LATEST);
}
private static void drop(BufferOverflowStrategy bufferOverflowStrategy) {
UnicastProcessor<String> hotSource = UnicastProcessor.create();
//构建Flux，buffer大小为5，BufferOverflowStrategy策略为丢弃最久的元素
Flux<String> hotFlux = getHotFlux(hotSource, 5, bufferOverflowStrategy);
CompletableFuture future = produceData(hotSource);
//构建Subscriber，初次请求20个元素
BaseSubscriber<String> subscriber = createSubscriber(20);
hotFlux.subscribe(subscriber);
future.join();
System.out.println("get rest elements from buffer");
//再次获取10个元素，根据策略应返还最后的10个元素
subscriber.request(10);
}
private static BaseSubscriber<String> createSubscriber(int initRequests) {
return new BaseSubscriber<String>() {
@Override
protected void hookOnSubscribe(Subscription subscription) {
request(initRequests);
}
@Override
protected void hookOnNext(String value) {
System.out.println("get value " + value);
}
};
}
private static CompletableFuture produceData(UnicastProcessor<String> hotSource) {
return CompletableFuture.runAsync(() -> {
IntStream.range(0, 50).forEach(
value -> {
hotSource.onNext("value is " + value);
}
);
});
}
private static Flux<String> getHotFlux(UnicastProcessor hotSource,
int maxBufferSize, BufferOverflowStrategy strategy) {
return hotSource
.publish()
.autoConnect()
.onBackpressureBuffer(maxBufferSize, strategy);
}
}

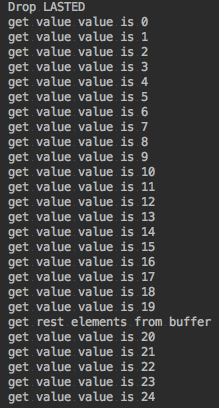

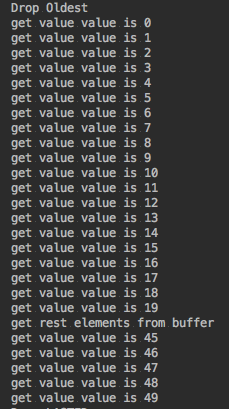

执行结果：注意get rest elements之后的值，Drop Oldest会保存最新的值，反正则是最久的值。
onBackPressureError
onBackPressureError直接抛出异常。
onBackPressureLatest
onBackPressureLates相当于onBackpressureBuffer(1, DROP_OLDEST) ，如下：
public class BackPressureOnBackpressureLatest {
public static void main(String[] args) {
onBackpressureLatest();
}
private static void onBackpressureLatest() {
UnicastProcessor<String> hotSource = UnicastProcessor.create();
Flux<String> hotFlux = getHotFlux(hotSource);
CompletableFuture future = produceData(hotSource);
//构建Subscriber，初次请求20个元素
BaseSubscriber<String> subscriber = createSubscriber(20);
hotFlux.subscribe(subscriber);
future.join();
System.out.println("get rest elements");
//再次获取10个元素，根据策略应返还最后的10个元素
subscriber.request(10);
}
private static BaseSubscriber<String> createSubscriber(int initRequests) {
return new BaseSubscriber<String>() {
@Override
protected void hookOnSubscribe(Subscription subscription) {
request(initRequests);
}
@Override
protected void hookOnNext(String value) {
System.out.println("get value " + value);
}
};
}
private static CompletableFuture produceData(UnicastProcessor<String> hotSource) {
return CompletableFuture.runAsync(() -> {
IntStream.range(0, 50).forEach(
value -> {
hotSource.onNext("value is " + value);
}
);
});
}
private static Flux<String> getHotFlux(UnicastProcessor hotSource) {
return hotSource
.publish()
.autoConnect()
.onBackpressureLatest();
}
}

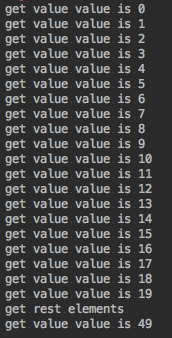

运行结果：注意rest element为49，即buffer为1，并且只保存了最新的一个元素。

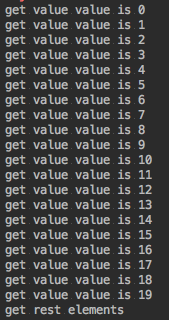

onBackpressureDrop
onBackpressureDrop会丢弃溢出的所有元素。
